18-24ft: Diameter

16350ft²: Coverage

0-60rpm: Speed

2.0hp: Motor

Our Fans

Crane Series Eagle Series Crab Series Buck Series

Eagle Series

Brochure

Eagle of Vanse , as the earliest generation of HVLS fan, has been selling well in the market for more than ten years.
Eagle HVLS fan is equipped with reduction motor from German, with large torque force and air volume, complete machine safety protection. All accessories meet industrial standards and are suitable for various occasions, including harsh occasions.

Features

• Standard universal mounting frame, compatible with most common building structures.
• Torque up to 240nm, resulting in easier and stable large air volume output.
• The petiole is flexibly connected to release high-frequency vibration, and there is no metal fatigue during long-term operation.
• Comply with CCC, CE, UL and other international standards, and key components pass safety testing.
• Meet the requirements of industrial grade safety products and can operate stably in harsh and severe environment for a long time.

Components

Power
Connection
Blade
Controller

German ABM and other reduction motor of the same class
① Fully cast aluminum shell, suitable for various environments；
② No wheel oil, no vent cap, prevent motor oil leakage;
③ Special bearing gear grinding, stable and silent;
④ Passed CE, UL, CSA certification, free of maintenance for a life long time.

Structural connection system
① Petiole and chassis are connected by trapezoidal ladder clamping groove, and the structure is stressed as a whole without the risk of bolt fracture;
② Petiole and blade adopt flexible shock absorber to release high-frequency vibration and ensure that the bolts are not impacted.

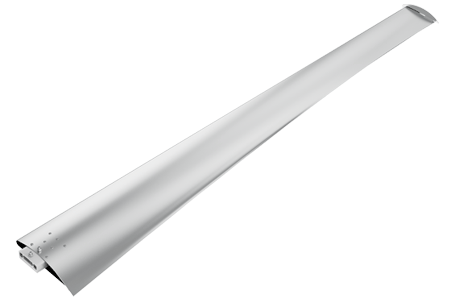

variable cross-section streamlined blade
① 5 pieces of 1.5mm thick 5052 aero-grade aluminum plate are adopted, which can withstand more than 3 tons of tension and will not crack when impact.
② Variable cross-section streamlined blade：fan blade gradually narrows from root to tip and thins to the tail then widens, wind resistance is small, air volume is more uniform.

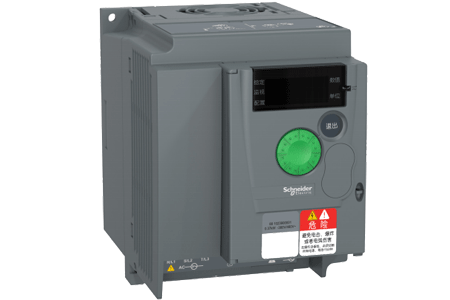

France schneider frequency converter
①Safety protection module, automatically cut off when accident；
②Adapting harsh environment, effectively shield electromagnetic interference with protection grade of IP55;
③Passed CCC, UL, EMC, LVD, RoHS certification.

Parameters

Diameter	Max Speed	Air Volume	Coverage Radius	Coverage	Decibels	weight	Motor Power	Input Power
24FT (7.3m)	55rpm	14130m3/min	72ft (22m)	16350ft2 (1519㎡)	55dBA	222lb (100.8kg)	2.0 hp (1.5kw)	3.4A/380V
22FT (6.7m)	60rpm	13022m3/min	68ft (21m)	14890ft2 (1384㎡)	55dBA	215lb (97.3kg)	2.0 hp (1.5kw)	3.4A/380V
20FT (6.1m)	65rpm	11960m3/min	62ft (19m)	12190ft2 (1133㎡)	55dBA	208lb (94.8kg)	2.0 hp (1.5kw)	3.4A/380V
18FT (5.5m)	70rpm	9970m3/min	55ft (17m)	9760ft2 (907㎡)	55dBA	204lb (92.3kg)	2.0 hp (1.5kw)	3.4A/380V

* Air volume, coverage, decibels, etc. are tested in the laboratory , and the actual use shall prevail.
* Size: the above are products with standard size, and other specifications can be customized.
* Weight: the weight does not include control box, connecting parts, steel wire rope, etc.
* Power supply: three-phase or single-phase can be selected, and can be customized.
