8-12ft: Diameter

540ft²: Coverage

0-90rpm: Speed

0.7hp: Motor

Our Fans

Crane Series Eagle Series Crab Series Buck Series

Buck Series

Brochure

The Buck large fan of Vanse, is a ground column fan designed for the space where the top hanging installation cannot be adopted. It has both fashion and function, no shaking and noise, and brings more added value while solving the air flow in the space.

Features

• Suitable for indoor and outdoor occasions, easy loading and unloading.
• Waterproof and dustproof, PMSM motor, energy-saving, silent and maintenance free.
• Additional devices like LED lights, billboards, seats and monitoring can be added.
• Connected with the building management system for remote control.

Components

Power
Connection
Blade
Controller

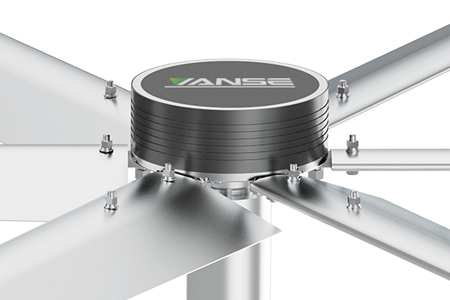

PMS motor:
① Small size: 1/3 of geared motor, applicable for more places;
② Low noise: less 40% than geared motor;
③ Fully enclosed, maintenance free.

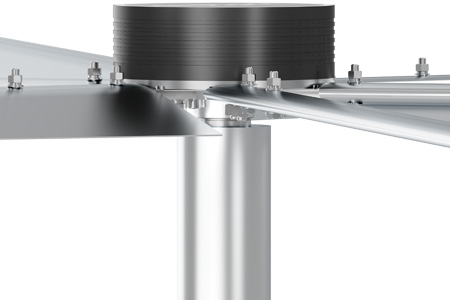

Stable positioning pull plate:
The multi tail quick positioning pull plate is integrated with the motor stator shaft. Compared with the split pull plate, the steel wire rope can directly stabilize the motor shaft, prevent shaking and increase the dynamic balance stability of the fan.

Balanced diversion winglet:
The upward balanced diversion winglet is equipped with a wind breaking part, a diversion part and a rectifier part to effectively prevent the adverse effects of fan imbalance, air dispersion, fan blade deformation and so on.

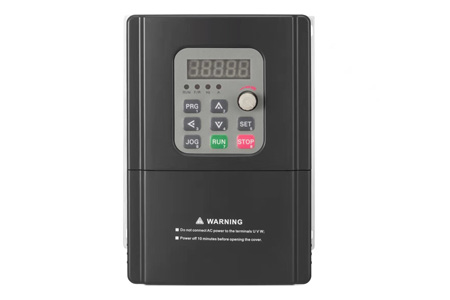

Vector Converter:
① Start steady: Motor vector algorithm and current suppression to achieve
② No noise: up to 16KHZ, no noise during speed up, slow down, and running
③ Failure protection: 25 fail-safe protections (over current,over voltage,under voltage phase loss,overload,etc.)

Parameters

Diameter	Max Speed	Air volume	Coverage Radius	Coverage	Decibels	Weight	Motor Power	Input Power
12FT (3.6m)	90rpm	6560m3/min	13ft (4m)	538ft2 (50㎡)	39dba	93lb (42kg)	0.7hp (0.5kw)	2.3A/220V
10FT (3.0m)	100rpm	5530m3/min	11ft (3.5m)	430ft2 (40㎡)	39dba	83lb (38kg)	0.7hp (0.5kw)	2.3A/220V
08FT (2.4m)	110rpm	4550m3/min	9ft (3m)	320ft2 (30㎡)	39dba	74lb (34kg)	0.7hp (0.3kw)	1.4A/220V

* Air volume, coverage, decibels, etc. are tested in the laboratory , and the actual use shall prevail.
* Size: the above are products with standard size, and other specifications can be customized.
* Weight: the weight does not include control box, connecting parts, steel wire rope, etc.
* Power supply: three-phase or single-phase can be selected, and can be customized.
